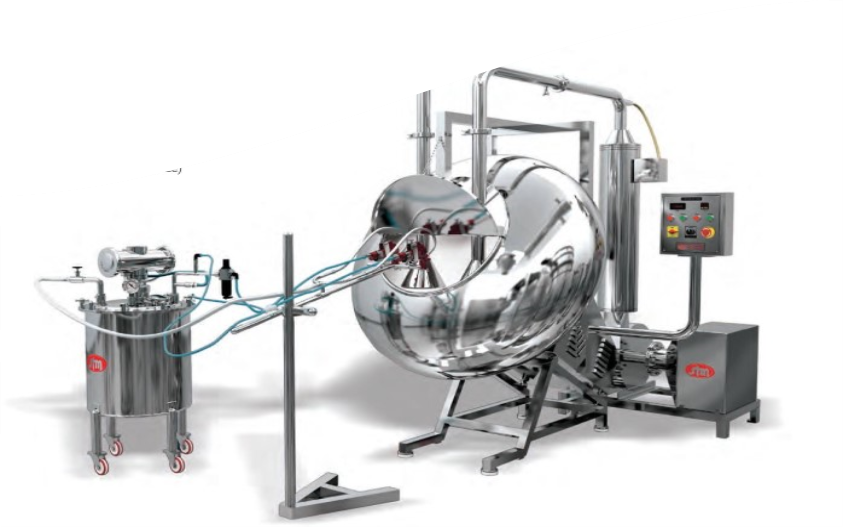

Conventional Coating Pan

Economic and versatile solution for Sugar and Film coating of tablets.

SAMS coating pan designed by keeping in mind needs of universal conventional coating requirement such as rotational speed, angle of inclination of pan, inside finish of pan, total volume, temperature of air and exhaust arrangement

Manufacturing Range: 12" to 72" (Pan Size)

Special feature:

  • Coating pan drive can be available with VFD for pan speed variation which required in both film as well as sugar coating

  • Spraying systems is also available with the unit

  • Polishing pan is made suitable on the same drive of coating pan drive

  • Hot air / Cold air blowing system used for tablets.

  • Hapa filter unit (optional) can be provided along with inlet ducting lines

  • Other options such as FLP motor & panel, steam heating unit can be provided

  • Model available in sizes 12", 24", 30", 42", 60" & 72"

  • Hot air blower system with mobile trolley and filter housing will be provided with TIC or PID type temperature controller for control of air temperature within the range of 50 degree C to 80 degree C
